Crystalactor
Chungam Water Treatment & Engineering Co., Ltd. is a specialized company that provides all solutions for water treatment processe
Crystalactor(Pellet Sof Water Equipment)
Efficient method that does not generate secondary waste (sludge, etc.)
- Softening industrial water
- Soft water treatment process of purified water
- Separation of anions and metals in water and wastewater
- Phosphating in wastewater
- Hydrofluoric acid treatment in water and wastewater
- Hardness
- heavy metals
- anions - P, SO4 , F

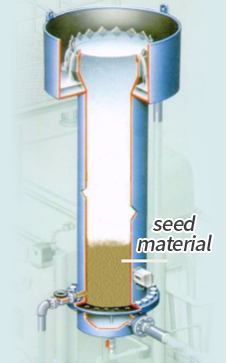

Crystallization in a pellet reactor

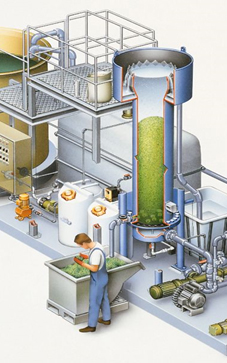

Pallet soft water equipment
removal and recovery process
Applications and Features
Applications
- Heavy metal treatment
- Fluorine compound
- Phosphate
- Sulfate
- Water softening
- Other metal ions
Main Advantages
- Compact structure
- No dewatering equipment required
- No sludge generated
- Easy handling of generated pellets

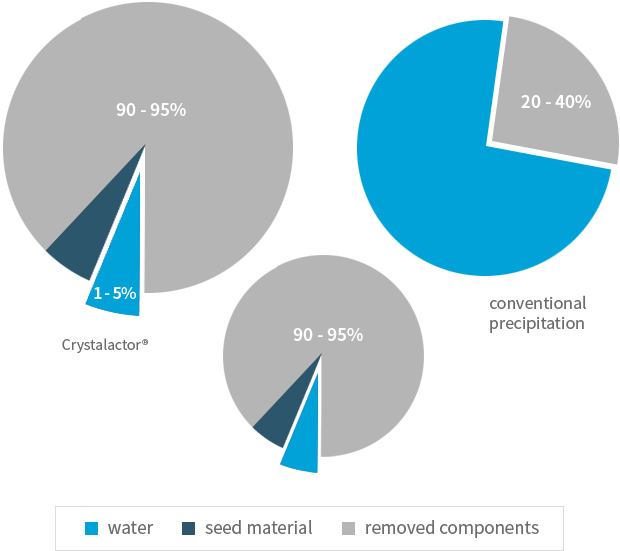

- Production of high-purity, low-moisture pellets
- Easy facility operation
- By-products are recovered or recycled
Features and scale of facilities
- Easy installation on site by bringing in assemblies (For large-scale, civil structure installation)
- Standard diameter of reactor: 0.4, 0.6, 0.8, 1.0, 1.25, 1.5 ... . 3.5 m
- Treatment flow range: 0.1 – 10,000 ㎥/h
- Removal ability: More than 100kg of metals or anions per hour can be processed as the unit
- Use of corrosion-resistant and durable materials
compact

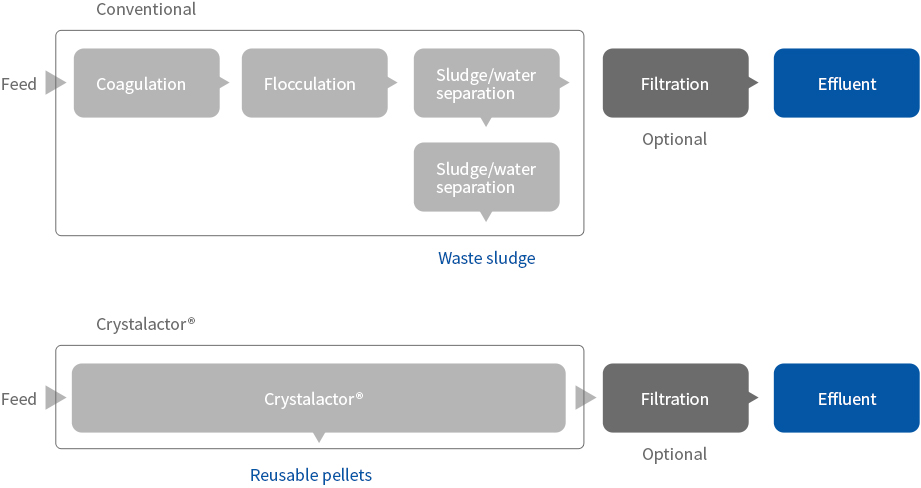

- four steps in one
Areas where by-products can be recycled
- Livestock feed
- Equalizer in brick manufacturing process
- Animal feed
- High temperature oven process
- Agriculture
